NanoVNA-F V3 is a Portable Vector Network Analyzer (VNA) with frequency range of 1MHz~6GHz. It can be used for S11 and S21 measurements. The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB.

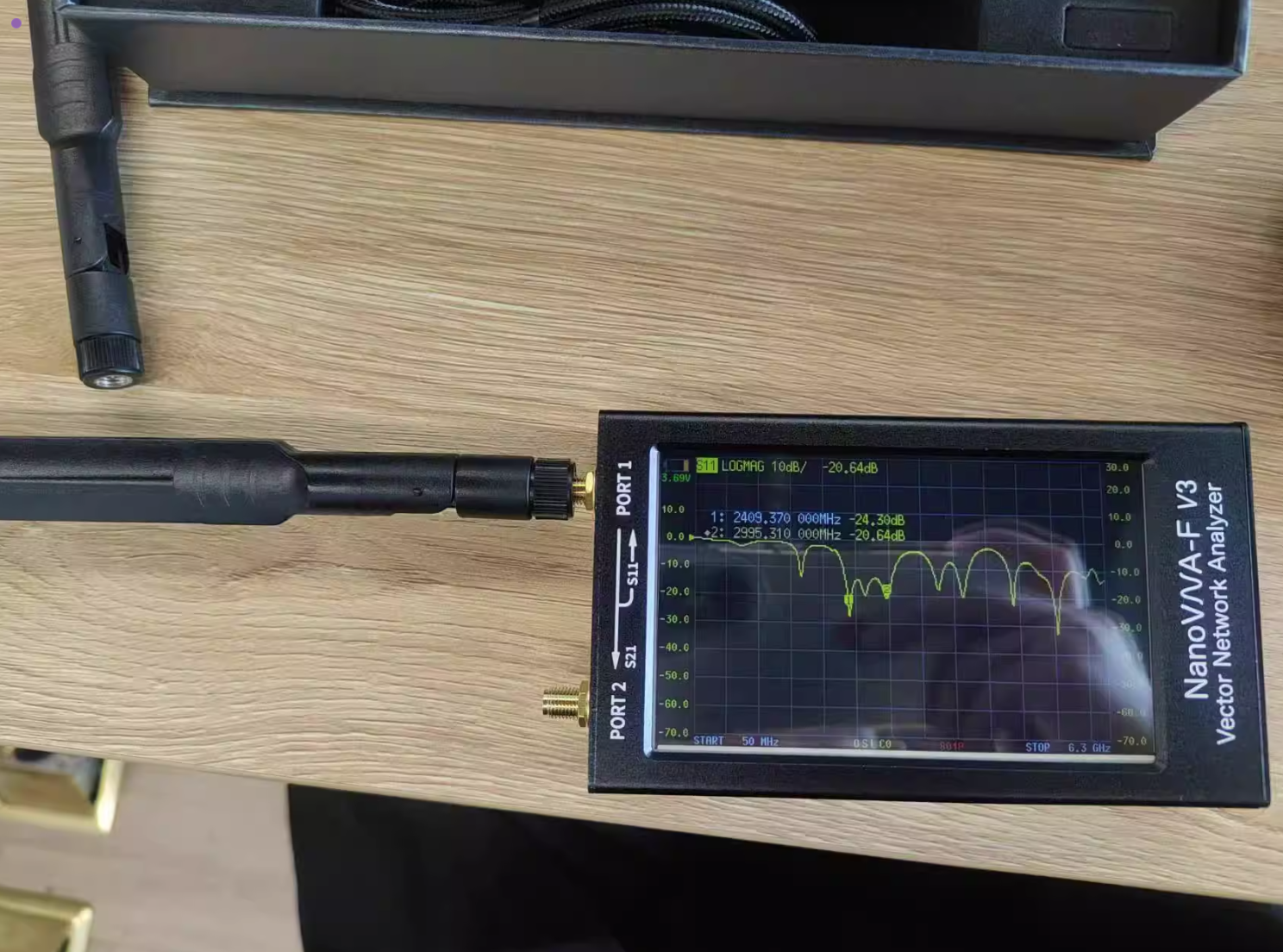

NanoVNA-F V3 antenna analyzer is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands. Supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components. For the amateur radio operator or radio enthusiast, this latest vna antenna analyzer will be a very handy analyzer to have.

After optimizing the RF design in our store, the NanoVNA-F V3 uses an independent local oscillator generation chip instead of the harmonic components commonly used in most imitations as a cheap option for local oscillator signals. Additionally, the customized all metal casing and high-quality SMA connector can support customers for longer use and better external shielding performance.

Especially the factory has perfectly calibrated the S21 performance of 3G-6G, far exceeding LiteVNA. It can conveniently monitor power dividers, combiners, filters, attenuators, antennas, cables, amplifiers, mixers, duplexers, couplers, isolators, circulators, adapters, waveguides, differential devices, etc.
Common testing functions include: TDR cable connection, standing wave ratio, return loss, insertion loss, flatness, out of band suppression, attenuation, gain, isolation, characteristic impedance, input-output impedance, phase, delay, and 1dB compression point.

 Features:
Frequency range: 1MHz-6GHz
S21 dynamic range: 65dB and S11 dynamic range: 50dB

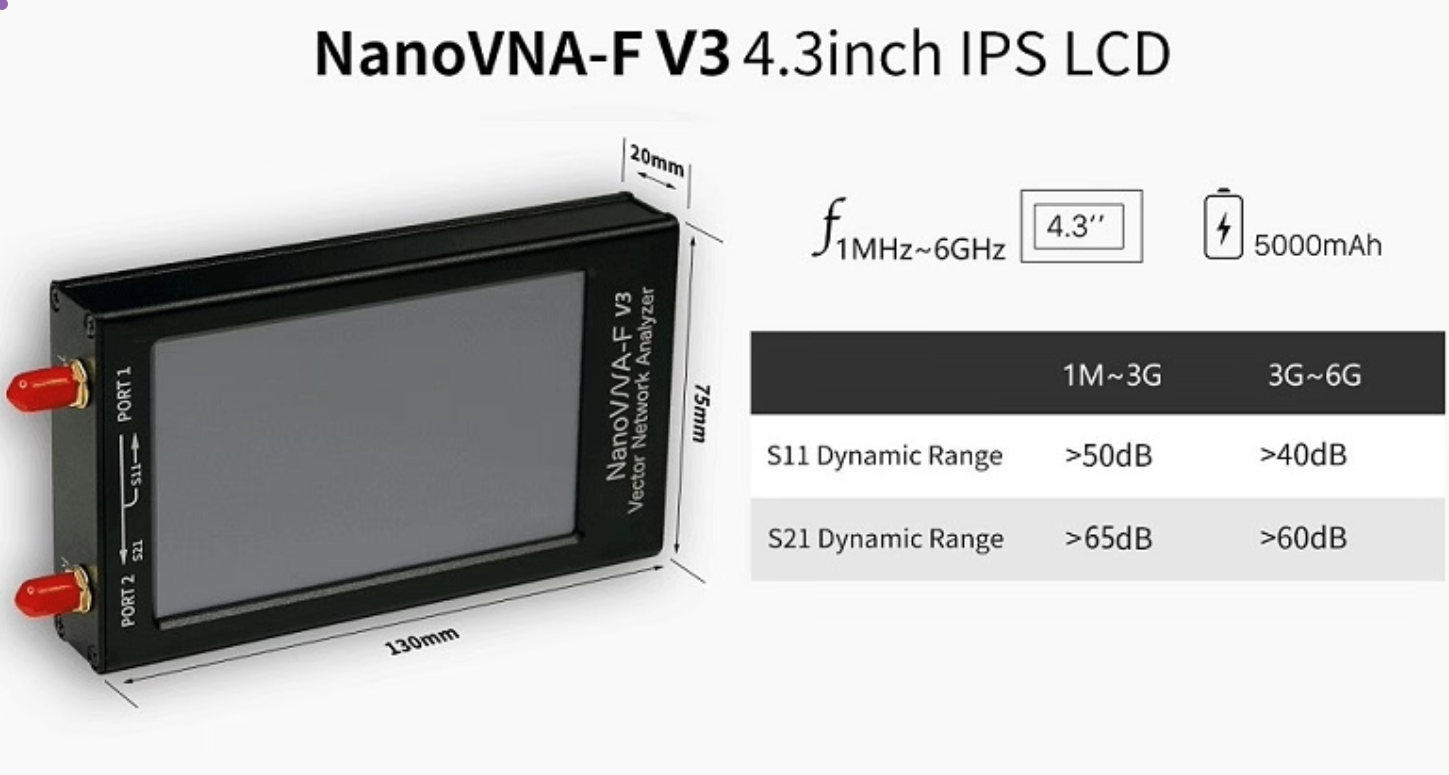

4.3" high-brightness IPS display with resistive touch panel

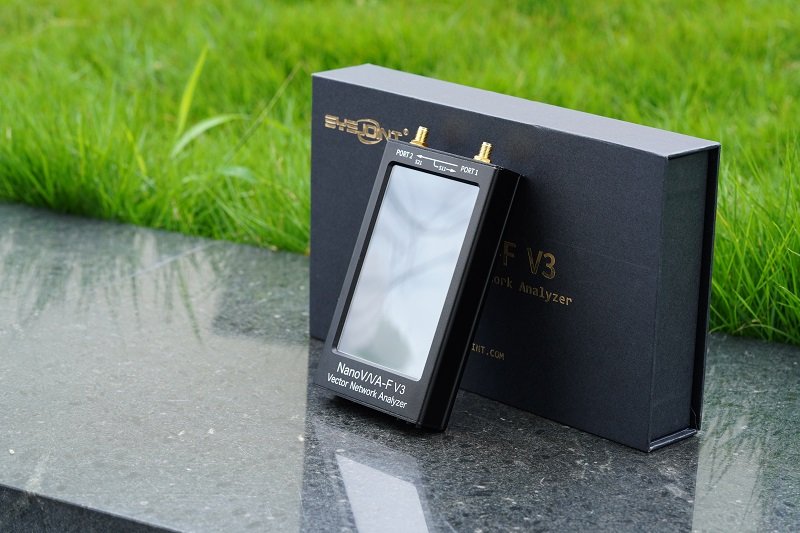

Metal case can effectively shield electromagnetic interference
SMA connector is stable and durable to use
Full touch screen and 3 physical buttons enable convenient and smooth operation
Dimensions: 125 x 75 x 20mm/4.9 x 3 x 0.8"
Built-in 4500mAh lithium-ion batteries with endurance time up to 5 hours
TDR function can be used to measure cable length
Up to 4 reference traces
Up to 4 markers, and the marker table can be dragged to anywhere on the screen
12 save/recall slots
Charging via USB Type-C, and the charging voltage is 5V DC
Designed with a 5V/1A USB power output port
Firmware upgrade via virtual U disk with USB Type-C cable
Comes with SMA calibration kit and 2 x 20cm/7.9" SMA-JJ RG405 coaxial cable
Supports console commands and PC software
